Electric Filter
Electric DDLG
Multi-band selection with high transmittance and precise repeat positioning. For detailed filter specifications, refer to our polarizer product line or contact us for custom solutions.
Specifications
| Rated Voltage | 24V | Input Voltage Range | 10–30V |
| Maximum Optical Element Thickness (mm) | 3 | Operating Temperature | 0~40℃° |
| Minimum Optical Element Thickness (mm) | 1 | ||
| Repeatability | ＜0.5° |
Downloads
Standard Products
| Model | Filter Size Compatibility | Clear Aperture | Enter maximum beam diameter | Maximum Channel Count |
|---|---|---|---|---|

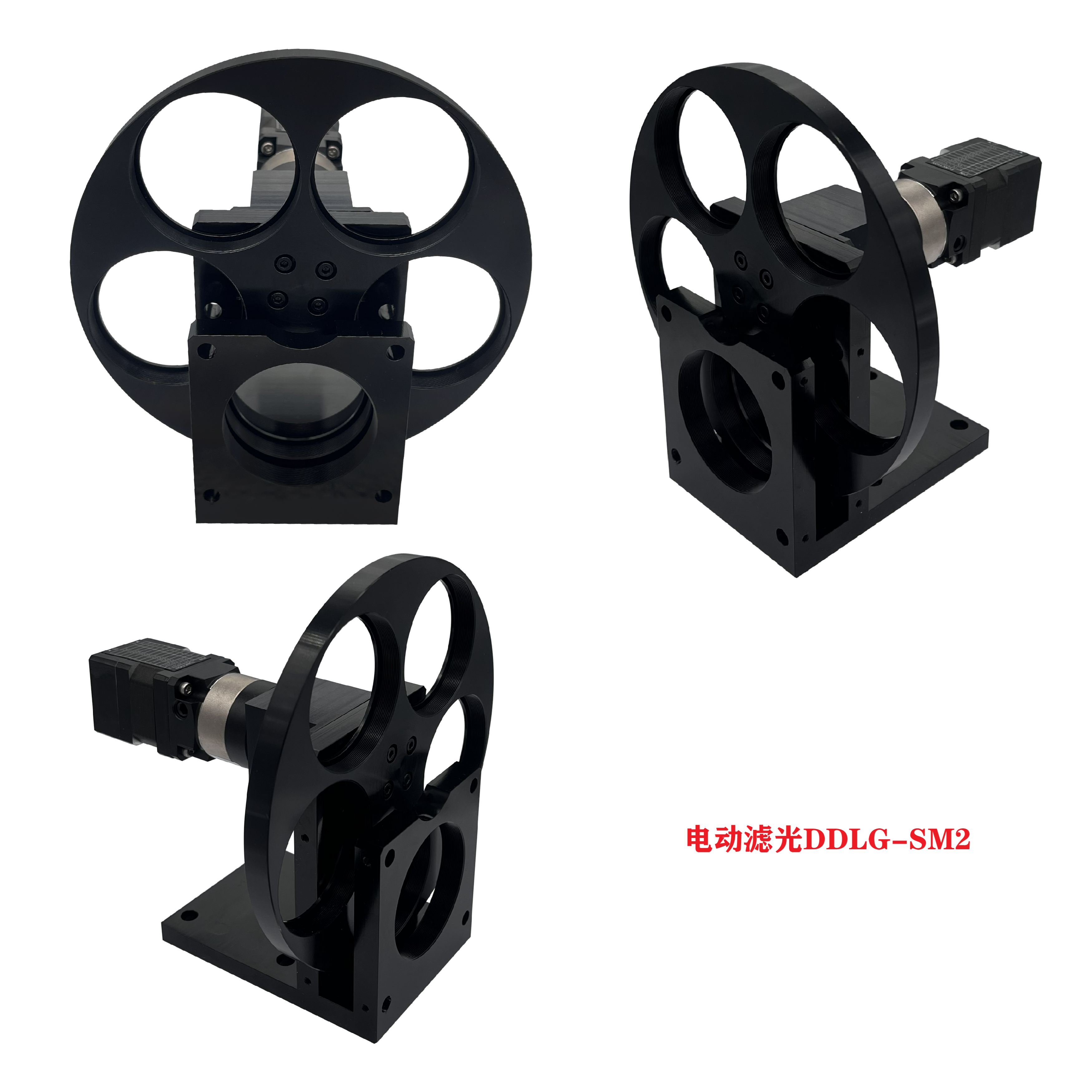

| DDLG-SM2 | 2 in (Φ50.8mm) | Φ48mm | Φ40mm | 5 |

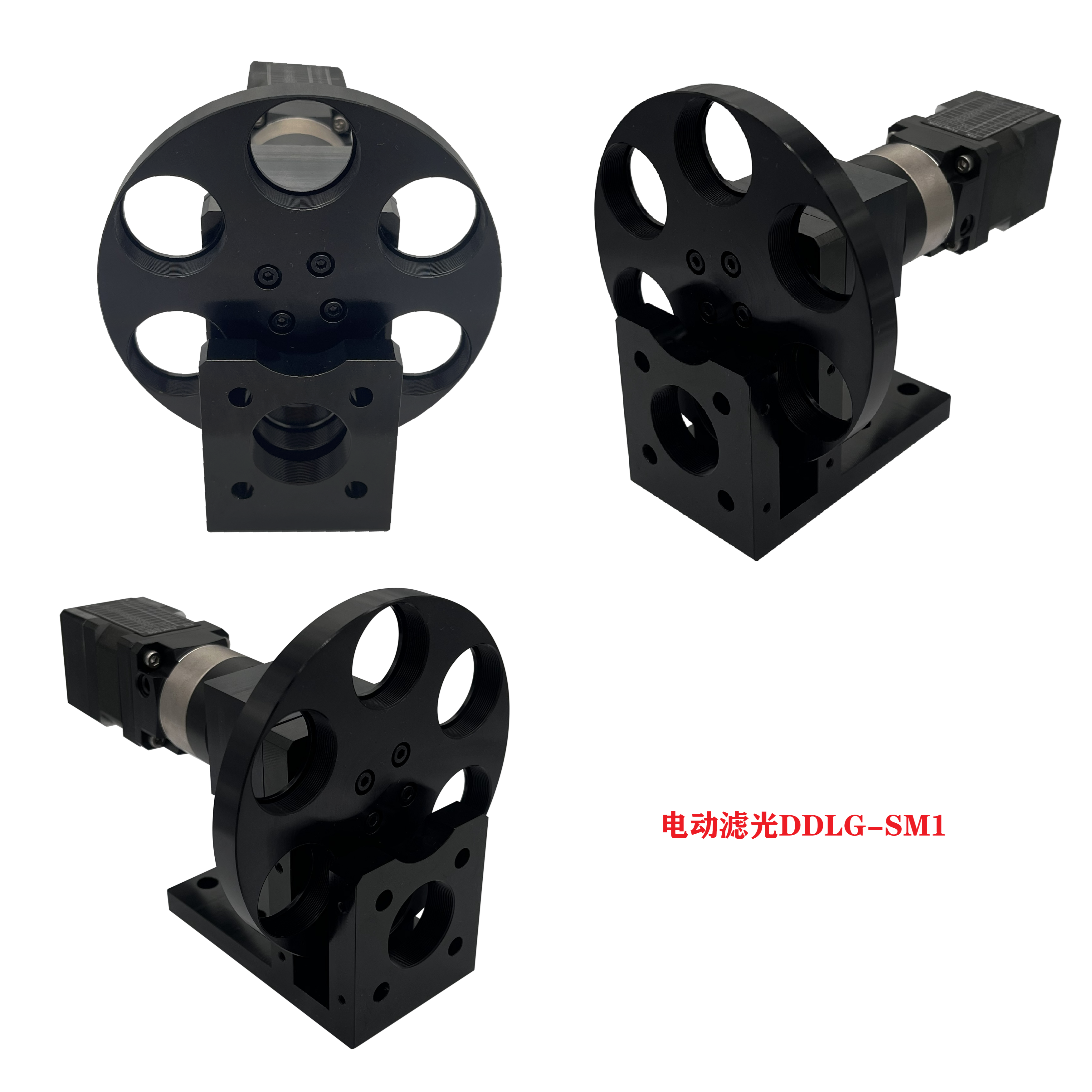

| DDLG-SM1 | 1 in (Φ25.4mm) | Φ2 4mm | Φ20mm | 6 |

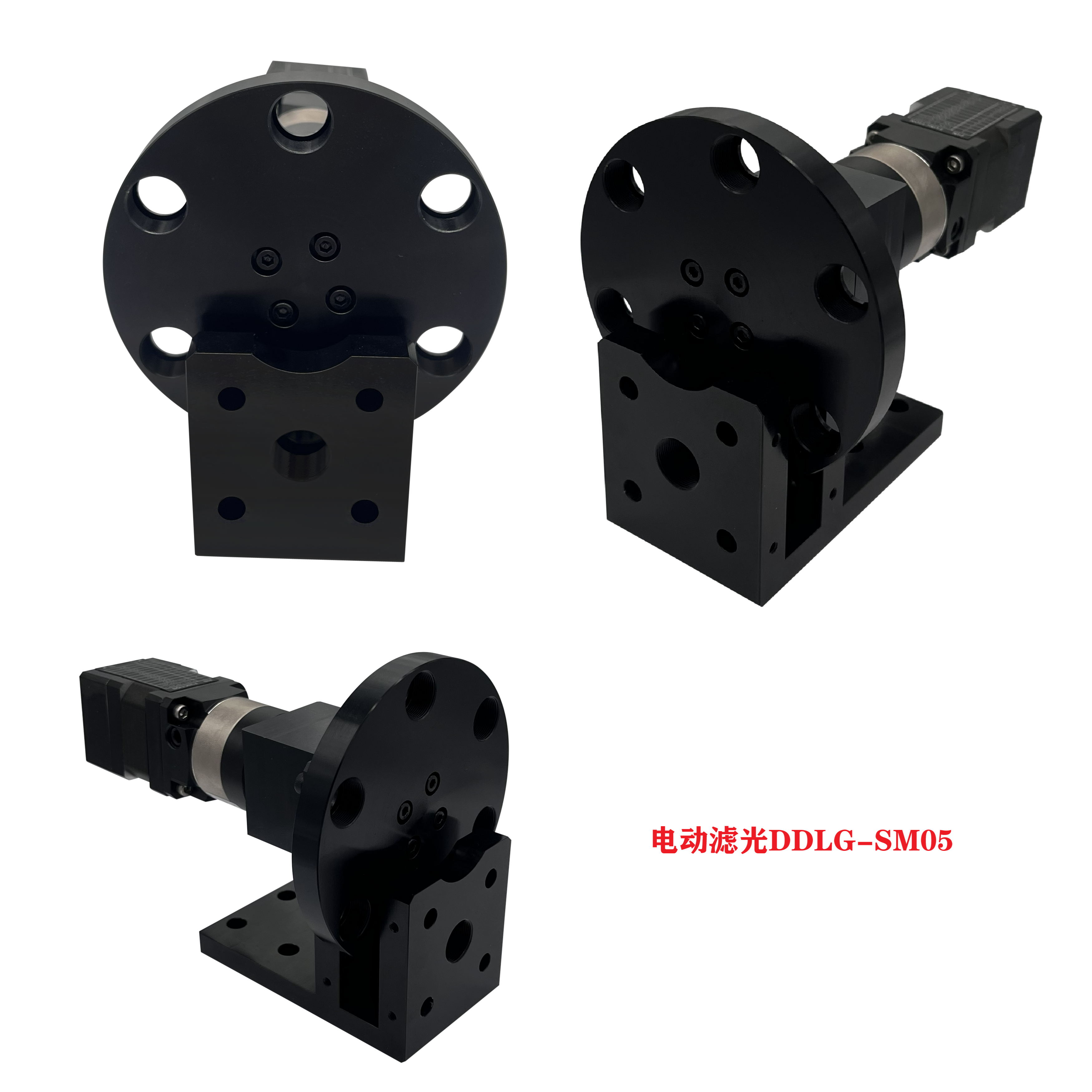

| DDLG-SM05 | 0.5 in (Φ12.7mm) | Φ1 1mm | Φ8mm | 6 |
