Electric polarization
Electric Polarizer DDPZ
High-precision, high-extinction-ratio motorized polarizer with automated scanning capability; functions as both a polarizer and analyzer. For detailed specifications of the polarizing film, refer to our related products or contact us for custom solutions.
Specifications
| Polarization Angle Range | 0~360° | Number of Patrol Slots | 6 |
| Degree of Polarization | ＞98% | Operating Temperature | 0~40℃ |
| Polarization angle accuracy | ＜1° | ||
| Control Accuracy | 0.1° |
Downloads
Standard Products
| Model | Fits polarizer size | Clear Aperture | Enter maximum beam diameter | Rated Voltage |
|---|---|---|---|---|

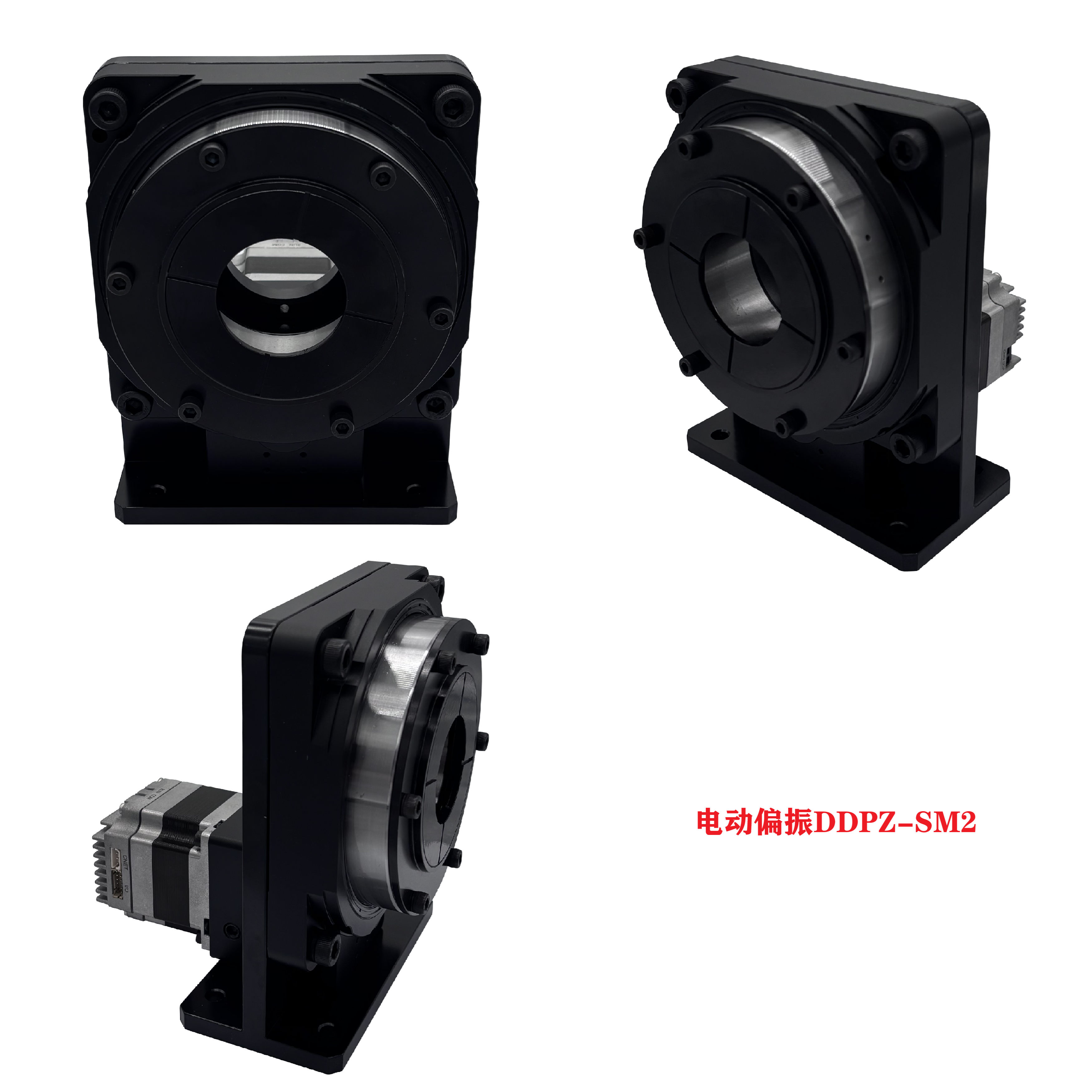

| DDPZ-SM2 | 2 in (50.8mm) | Φ4 6mm | Φ40mm | 48V |

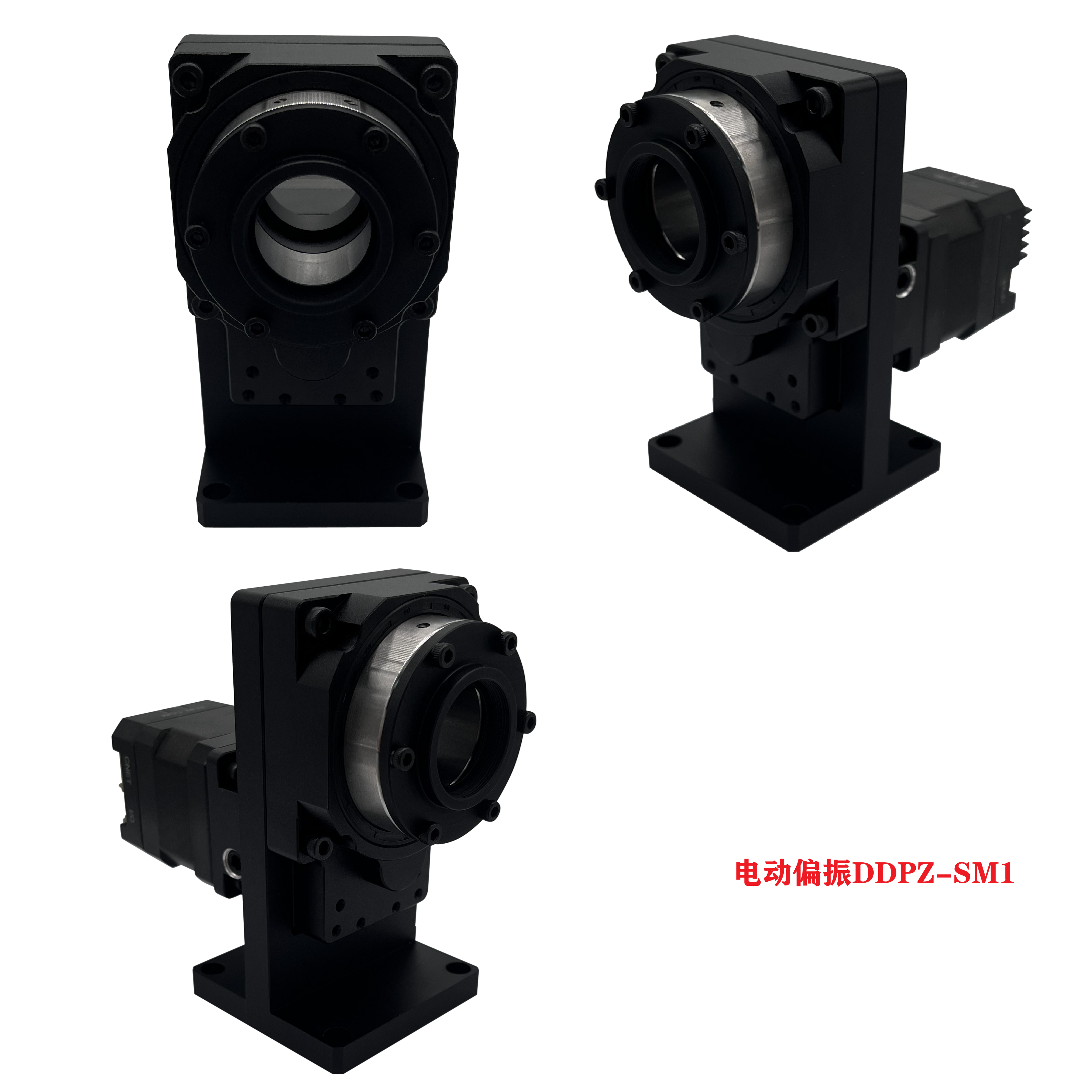

| DDPZ-SM1 | 1 in (25.4mm) | Φ23.5mm | Φ20mm | 24V |

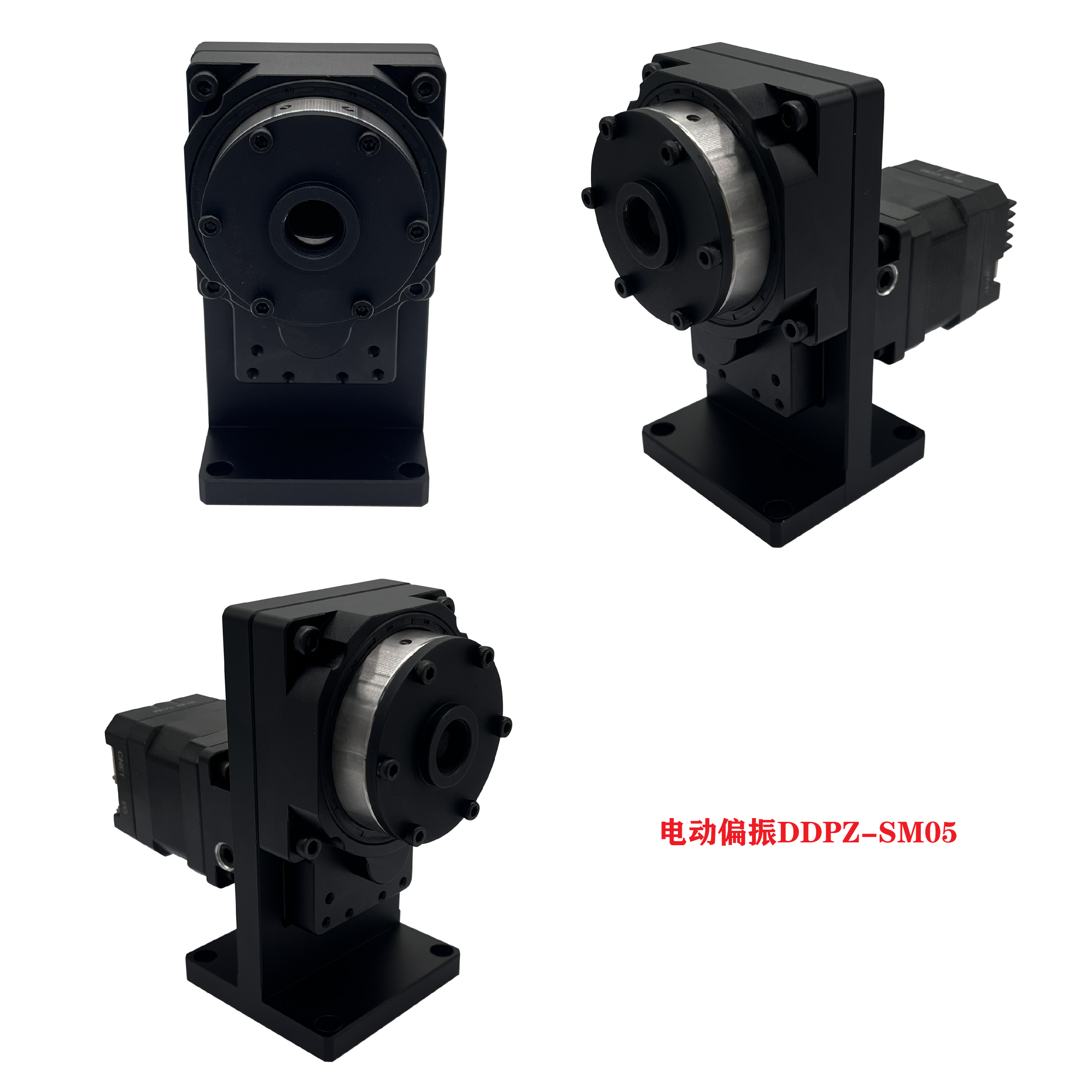

| DDPZ-SM05 | 0.5in (12.7mm) | Φ11.4mm | Φ8mm | 24V |
