Laser Attenuator

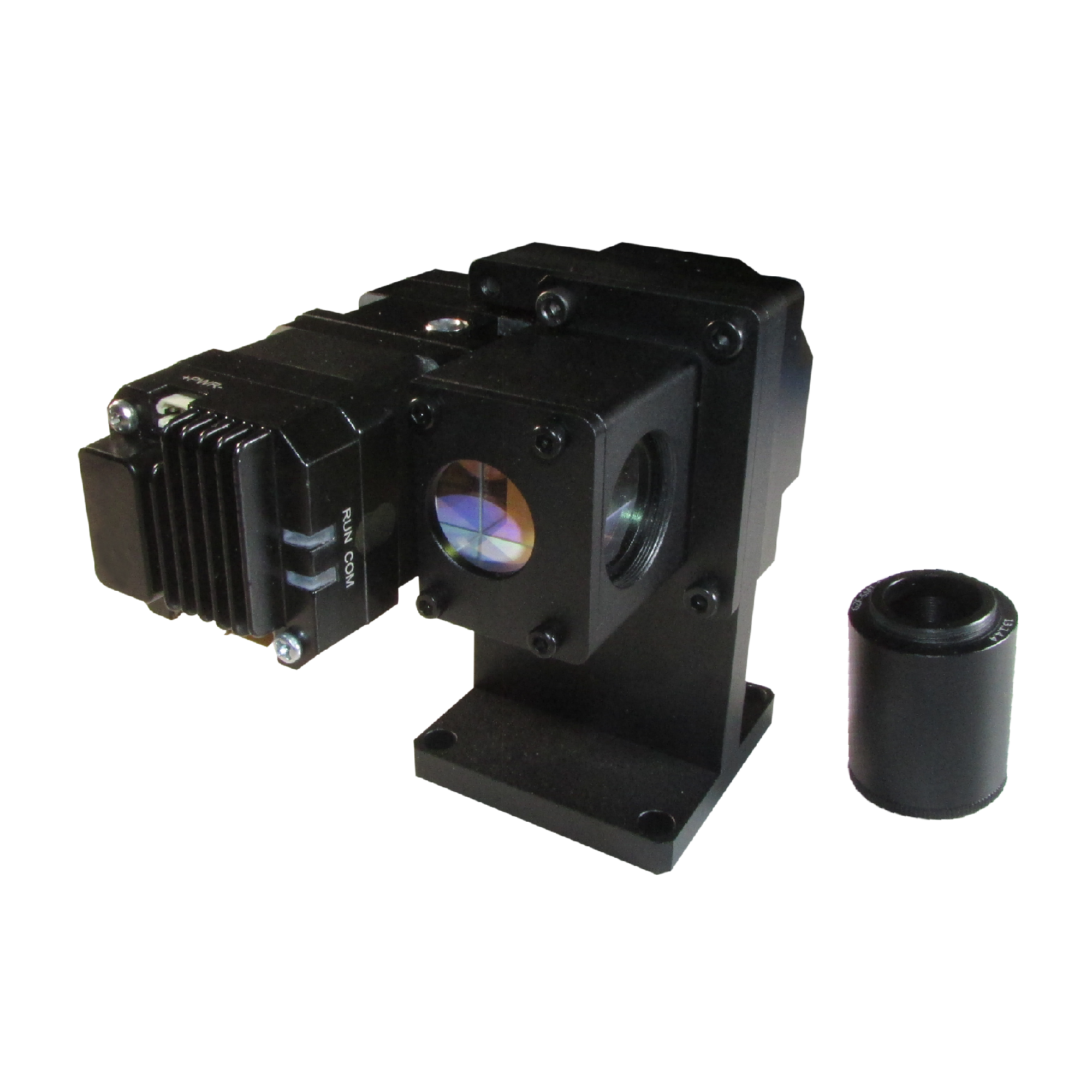

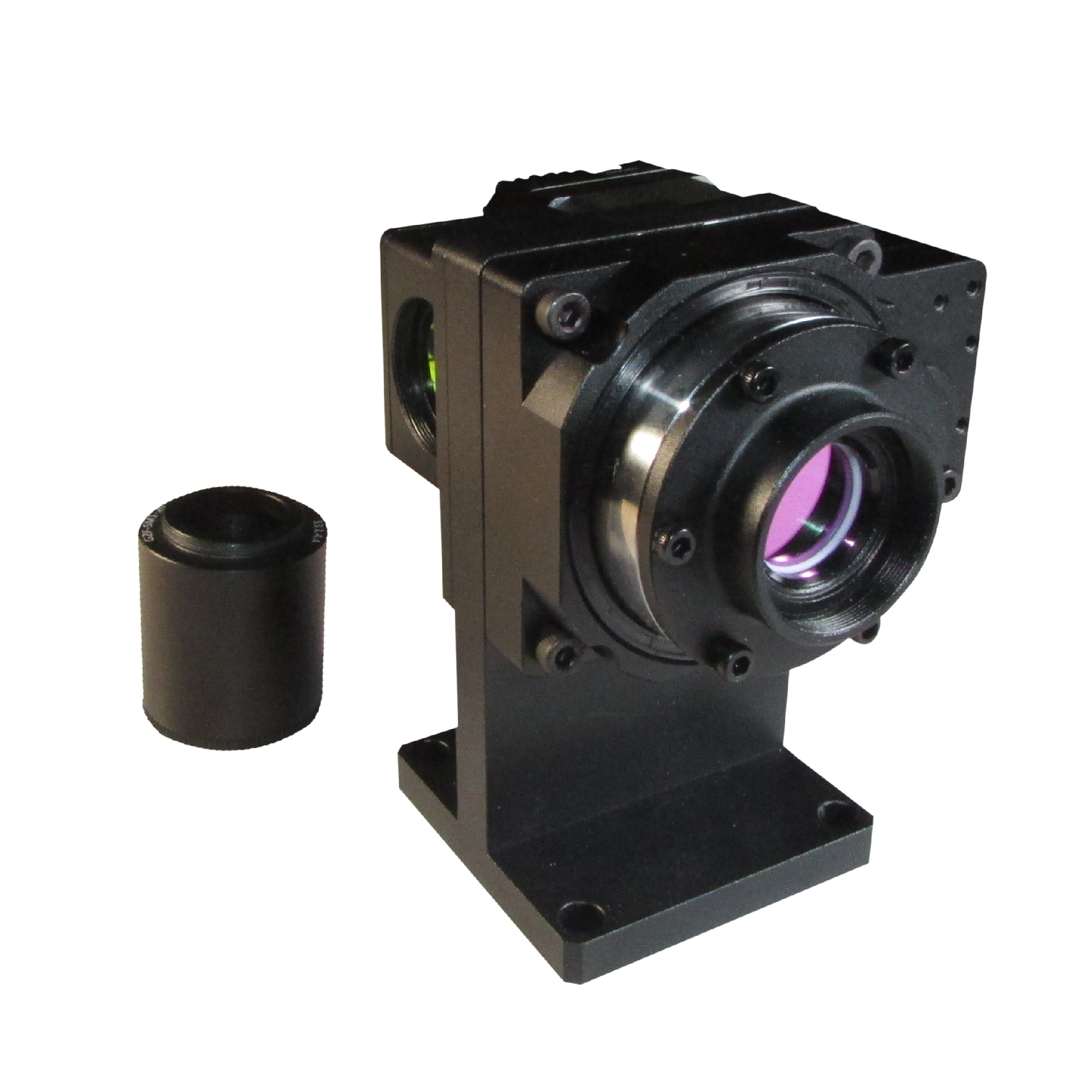

Laser Attenuator JT
Large-aperture, high-damage-threshold crystal attenuator
Specifications
| Clear Aperture (mm) | $18 | Enter maximum beam diameter (mm) | $15 |
| Transmittance Range (%) | 0.1~96 | Adjust Angle | 0~45° |
| Resolution | 0.10% | Damage Threshold (J/cm²) | 15 |
| Power | 1A@24V | Dimensions (L × W × H) (mm) | 129*114*105 |
Downloads
Standard Products
| Model | Wavelength (nm) | Type | Light Transmission Ratio | Structure |
|---|---|---|---|---|
| SJJT-285D18TH15 | 285 | Transmissive | 0.1~96% | λ/2 bonded waveplate and high-damage-threshold crystal |
| SJJT-532D18TH15 | 532 | Transmissive | 0.1~96% | λ/2 bonded waveplate and high-damage-threshold crystal |
| SJJT-1064D18TH15 | 1064 | Transmissive | 0.1~96% | λ/2 bonded waveplate and high-damage-threshold crystal |
